SpringBoot+AOP实现系统日志模块

发布于 2023-02-13 | 作者: 玩屎的猪 | 来源: CSDN博客 | 转载于: CSDN博客

一、引入AOP依赖

   org.springframework.boot
   spring-boot-starter-aop

二、生成必要枚举类和接口

（1）OpType.java （操作类型）

package com.plat.sysLog.logEnum;

/**
 * @author xxs
 * @date 2022年08月10日 16:44
 */
public interface OpType {

    /**
     * 新增
     */
    public static final int ADD = 1;

    /**
     * 修改
     */
    public static final int UPDATE = 2;
    /**
     * 删除
     */
    public static final int DELETE = 3;
    /**
     * 查询-分页
     */
    public static final int QUERY_PAGE = 4;
    /**
     * 其他
     */
    public static final int OTHER = 5;
    /**
     * 登录
     */
    public static final int LOGIN = 6;
    /**
     * 登出
     */
    public static final int LOGOUT = 7;
    /**
     * 导出
     */
    public static final int EXPORT = 8;
    /**
     * 导入
     */
    public static final int IMPORT = 9;
    /**
     * 保存
     */
    public static final int SAVE = 10;
    /**
     * 发送邮件
     */
    public static final int SEND_EMAIL = 11;
    /**
     * 发送短信
     */
    public static final int SMS = 12;
    /**
     * 查询-不分页
     */
    public static final int QUERY_NO_PAGE = 13;
    /**
     * 查询明细
     */
    public static final int QUERY_DETAIL = 14;
    /**
     * 审核
     */
    public static final int AUDIT = 15;
    /**
     * 反审核
     */
    public static final int UN_AUDIT = 16;
    /**
     * 下载
     */
    public static final int DOWNLOAD = 17;
    /**
     * 上传
     */
    public static final int UPLOAD = 18;
    /**
     * 校验
     */
    public static final int CHECK = 19;
    /**
     * 安装
     */
    public static final int INSTALL = 20;
    /**
     * 卸载
     */
    public static final int UN_INSTALL = 21;
    /**
     * 启动
     */
    public static final int START = 22;
    /**
     * 停止
     */
    public static final int STOP = 23;
    /**
     * 重启
     */
    public static final int RESTART = 24;
    /**
     * 暂停
     */
    public static final int PAUSE = 25;
    /**
     * 恢复
     */
    public static final int RESUME = 26;
    /**
     * 刷新
     */
    public static final int REFRESH = 27;
    /**
     * 生成
     */
    public static final int GENERATE = 28;
    /**
     * 统计
     */
    public static final int STATISTICS = 29;

    /**
     * 同步
     */
    public static final int SYNC = 30;
    /**
     * 定时调度
     */
    public static final int SCHEDULE = 31;
}

（2）OpTypeEnum.java （操作类型枚举）

package com.plat.sysLog.logEnum;

import java.util.ArrayList;
import java.util.List;

/**
 * @author hz
 */
public enum OpTypeEnum {
    /*
        1. 增加
        2. 删除
        3. 修改
        4. 查询
        5. 其他
     */
    ADD(OpType.ADD, "新增"),

    UPDATE(OpType.UPDATE, "修改"),

    DELETE(OpType.DELETE, "删除"),

    QUERY_PAGE(OpType.QUERY_PAGE, "查询-分页", true),

    OTHER(OpType.OTHER, "其他"),

    LOGIN(OpType.LOGIN, "登录"),

    LOGOUT(OpType.LOGOUT, "登出"),

    EXPORT(OpType.EXPORT, "导出"),

    IMPORT(OpType.IMPORT, "导入"),

    SAVE(OpType.SAVE, "保存"),

    SEND_EMAIL(OpType.SEND_EMAIL, "发送邮件"),

    SMS(OpType.SMS, "发送短信"),

    QUERY_NO_PAGE(OpType.QUERY_NO_PAGE, "查询-不分页", true),

    QUERY_DETAIL(OpType.QUERY_DETAIL, "查询明细", true),

    AUDIT(OpType.AUDIT, "审核"),

    UN_AUDIT(OpType.UN_AUDIT, "反审核"),

    DOWNLOAD(OpType.DOWNLOAD, "下载"),

    UPLOAD(OpType.UPLOAD, "上传"),

    CHECK(OpType.CHECK, "校验"),

    INSTALL(OpType.INSTALL, "安装"),

    UN_INSTALL(OpType.UN_INSTALL, "卸载"),

    START(OpType.START, "启动"),

    STOP(OpType.STOP, "停止"),

    RESTART(OpType.RESTART, "重启"),

    PAUSE(OpType.PAUSE, "暂停"),

    RESUME(OpType.RESUME, "恢复"),

    REFRESH(OpType.REFRESH, "刷新"),

    GENERATE(OpType.GENERATE, "生成"),

    STATISTICS(OpType.STATISTICS, "统计"),

    SYNC(OpType.SYNC, "同步"),

    SCHEDULE(OpType.SCHEDULE, "定时调度"),

    last(0, "最后一个");
    final int key;
    final String desc;
    //是否忽略返回结果
    final boolean ignoreResult;

    OpTypeEnum(int key, String desc) {
        this.key = key;
        this.desc = desc;
        this.ignoreResult = false;
    }

    OpTypeEnum(int key, String desc, boolean ignoreResult) {
        this.key = key;
        this.desc = desc;
        this.ignoreResult = ignoreResult;
    }

    /**
     * 根据key获取desc
     */
    public static String getDesc(Integer key) {
        for (OpTypeEnum opTypeEnum : OpTypeEnum.values()) {
            if (opTypeEnum.getKey() == key) {
                return opTypeEnum.getDesc();
            }
        }
        return "";
    }

    /**
     * 获取所有忽略返回结果的Key集合
     */
    public static List getIgnoreResultKeys() {
        List keys = new ArrayList<>();
        for (OpTypeEnum opTypeEnum : OpTypeEnum.values()) {
            if (opTypeEnum.isIgnoreResult()) {
                keys.add(opTypeEnum.getKey());
            }
        }
        return keys;
    }

    public int getKey() {
        return key;
    }

    public String getDesc() {
        return desc;
    }

    public boolean isIgnoreResult() {
        return ignoreResult;
    }
}

（3）SysType.java （面向调用服务类型）

package com.plat.sysLog.logEnum;

/**
 * @author xxs
 * @date 2022年08月10日 16:50
 */
public interface SysType {
    /**
     * WEB服务
     */
    public static final int WEB = 1;
}

（4）SysLog.java（系统日志实体类）

package com.plat.sysLog.model;

import lombok.Data;
import lombok.experimental.Accessors;

@Data
@Accessors(chain = true)
public class SysLog {

    private static final long serialVersionUID = 1L;
    /**
     *
     */
    private Long id;

    /**
     * 操作人
     */
    private String operationUser;

    /**
     * 请求路径
     */
    private String path;

    /**
     * 开始时间
     */
    private String startTime;
    /**
     * 结束时间
     */
    private String endTime;


    /**
     * 方法入参
     */
    private String parameter;

    /**
     * 返回参数
     */
    private String result;

    /**
     * 操作方法
     */
    private String title;

    /**
     * 方法描述
     */
    private String action;

    /**
     * 系统类型
     */
    private Integer sysType;

    /**
     * 操作类型
     */
    private Integer opType;

    /**
     * 请求ip
     */
    private String sourceIp;

    /**
     * 方法名称
     */
    private String method;

    /**
     * 请求方式
     */
    private String requestMethod;

    /**
     * 操作状态（0正常 1异常）
     */
    private Integer status;

    /**
     * 错误信息
     */
    private String errorMsg;


    public SysLog() {

    }
}

三、创建注解类 OperationLog.java

package com.plat.sysLog.config;

import com.plat.sysLog.logEnum.OpType;
import com.plat.sysLog.logEnum.SysType;

import java.lang.annotation.*;

/**
 * @author xxs
 * @date 2022年08月10日 16:01
 */
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
@Documented
public @interface OperationLog {
    //功能模块
    String title() default "";
    //详情
    String desc() default "";
    //操作类型
    int opType() default OpType.OTHER;
    //接口调用方系统类型
    int sysType() default SysType.WEB;
    //是否忽略返回结果,0跟随默认，1忽略，2不忽略
    int ignoreResult() default 0;
    //是否忽略请求参数
    boolean ignoreParam() default false;
    //是否来源于定时任务
    boolean fromTask() default false;
}

四、创建切面处理类（重要！） SystemLogAspect.java

package com.hz.plat.sysLog.logAspect;

import com.alibaba.fastjson.JSONObject;
import com.plat.common.util.DateUtil;
import com.plat.common.util.IpAddressUtil;
import com.plat.shiro.TokenManager;
import com.plat.sysLog.config.OperationLog;
import com.plat.sysLog.dao.SysLogMapper;
import com.plat.sysLog.logEnum.OpTypeEnum;
import com.plat.sysLog.model.SysLog;
import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.aspectj.lang.reflect.CodeSignature;
import org.springframework.core.annotation.Order;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.stereotype.Component;
import org.springframework.util.ObjectUtils;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.multipart.MultipartFile;

import javax.annotation.Resource;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpSession;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

/**
 * @author xxs
 * @date 2022年08月10日 16:01
 * @description 操作日志切面
 */
@Aspect
@Component
@EnableAsync
@Order(-1)
@Slf4j
public class SystemLogAspect {
    SysLog sysLog = null;
    //日志 mapper
    @Resource
    private SysLogMapper logMapper;
    //请求
    private HttpServletRequest request = null;
    //是否忽略返回结果
    private int ignoreResult = 0;
    //是否来源定时任务
    private boolean isScheduledTask = false;

    /**
     * 注解的位置
     */
    @Pointcut("@annotation(com.plat.sysLog.config.OperationLog)")
    public void logPointCut() {
    }


    @Around(value = "logPointCut()")
    public Object around(ProceedingJoinPoint pjp) throws Throwable {
        try {
            sysLog = new SysLog();
            sysLog.setStartTime(DateUtil.getCurrentDateString("yyyy-MM-dd HH:mm:ss.SSS"));
            //通过uuid关联请求参数和返回参数
//            String uuid = UUID.randomUUID().toString().replaceAll("-", "");
            String user = null;
            try {
                user = TokenManager.getNickname();
            } catch (Exception e) {
                user = "未登录用户";
            }
//            sysLog.setId(uuid);
            sysLog.setOperationUser(user);
            methodBefore(pjp);

            Object proceed = pjp.proceed();
            methodAfter(proceed);
            sysLog.setStatus(0);
            return proceed;
        } catch (Exception e) {
            sysLog.setStatus(1);
            sysLog.setErrorMsg(sysLog.getErrorMsg() + "errMsg:" + e.getMessage() + "\n" + "errStackTrace:" + e.getStackTrace()[0].toString() + "\n");
            log.error("【AOP日志管理】=========》", e);
            throw e;
        } finally {
            sysLog.setEndTime(DateUtil.getCurrentDateString("yyyy-MM-dd HH:mm:ss.SSS"));
            if (isScheduledTask) {
                sysLog.setRequestMethod("定时任务");
                sysLog.setSourceIp("定时任务");
                sysLog.setPath("定时任务");
            } else {
                String requestMethod = null;
                String requestPath = null;
                String ipAddress = null;
                try {
                    request = getHttpServletRequest();
                    requestMethod = request.getMethod();
                    requestPath = request.getServletPath();
                    ipAddress = IpAddressUtil.getIpAddress(request);
                } catch (Exception e) {
                    sysLog.setErrorMsg(sysLog.getErrorMsg() + "errMsg:" + e.getMessage() + "\n" + "errStackTrace:" + e.getStackTrace()[0].toString() + "\n");
                    log.error("【AOP日志管理】=========》", e);
                }
                sysLog.setSourceIp(ipAddress);
                sysLog.setRequestMethod(requestMethod);
                sysLog.setPath(requestPath);
            }
            logMapper.insert(sysLog);
        }
    }

    /**
     * 处理返回结果
     * @param proceed
     */
    private void methodAfter(Object proceed) {
        if (ObjectUtils.nullSafeEquals(ignoreResult, 0)) {
            if (proceed != null) {
                String resultParamJsonStr = JSONObject.toJSONString(proceed);
                if (OpTypeEnum.getIgnoreResultKeys().contains(sysLog.getOpType())) {
                    sysLog.setResult("忽略返回结果");
                } else {
                    sysLog.setResult(resultParamJsonStr);
                }
            }
        } else if (ObjectUtils.nullSafeEquals(ignoreResult, 1)) {
            sysLog.setResult("忽略返回结果");
        }else if (ObjectUtils.nullSafeEquals(ignoreResult, 2)) {
            if (proceed != null) {
                String resultParamJsonStr = JSONObject.toJSONString(proceed);
                sysLog.setResult(resultParamJsonStr);
            }
        }
    }

    public void methodBefore(JoinPoint joinPoint) {
        // 打印请求内容
        try {
            String targetName = joinPoint.getTarget().getClass().getName();
            String methodName = joinPoint.getSignature().getName();
            Object[] arguments = joinPoint.getArgs();
            Class targetClass = null;
            try {
                targetClass = Class.forName(targetName);
            } catch (ClassNotFoundException e) {
                e.printStackTrace();
            }
            Method[] methods = new Method[0];
            if (targetClass != null) {
                methods = targetClass.getMethods();
            }
            Class[] clazzs;
            for (Method method : methods) {
                if (method.getName().equals(methodName)) {
                    clazzs = method.getParameterTypes();
                    if (clazzs.length == arguments.length && method.getAnnotation(OperationLog.class) != null) {
                        String title = method.getAnnotation(OperationLog.class).title();
                        int sysType = method.getAnnotation(OperationLog.class).sysType();
                        int opType = method.getAnnotation(OperationLog.class).opType();
                        String action = method.getAnnotation(OperationLog.class).desc();
                        ignoreResult = method.getAnnotation(OperationLog.class).ignoreResult();
                        isScheduledTask = method.getAnnotation(OperationLog.class).fromTask();
                        boolean ignoreParam = method.getAnnotation(OperationLog.class).ignoreParam();
                        if (!ignoreParam) {
                            Map nameAndValue = getNameAndValue(joinPoint);
                            String paramJsonStr = JSONObject.toJSONString(nameAndValue);
                            sysLog.setParameter(paramJsonStr);
                        } else {
                            sysLog.setParameter("忽略请求参数");
                        }
                        String thisMethodName = targetName + "." + methodName;
                        sysLog.setTitle(title);
                        sysLog.setSysType(sysType);
                        sysLog.setOpType(opType);
                        sysLog.setAction(action);
                        sysLog.setMethod(thisMethodName);
                    }
                }
            }
        } catch (Exception e) {
            sysLog.setErrorMsg(sysLog.getErrorMsg() + "errMsg:" + e.getMessage() + "\n" + "errStackTrace:" + e.getStackTrace()[0].toString() + "\n");
        }
    }

    /**
     * @param joinPoint
     * @return
     * @Description 获取入参方法参数
     */
    public Map getNameAndValue(JoinPoint joinPoint) {
        Map param = new HashMap<>();
        Object[] paramValues = joinPoint.getArgs();
        String[] paramNames = ((CodeSignature) joinPoint.getSignature()).getParameterNames();
        for (int i = 0; i < paramNames.length; i++) {
            if (paramValues[i] instanceof MultipartFile || paramValues[i] instanceof HttpSession || paramValues[i] instanceof ServletRequest || paramValues[i] instanceof ServletResponse) {
                param.put(paramNames[i], "忽略请求参数：" + paramValues[i].getClass().getTypeName());
            } else {
                param.put(paramNames[i], paramValues[i]);
            }
        }
        return param;
    }


    /**
     * @Description: 获取request
     */
    public HttpServletRequest getHttpServletRequest() {
        RequestAttributes ra = RequestContextHolder.getRequestAttributes();
        ServletRequestAttributes sra = (ServletRequestAttributes) ra;
        HttpServletRequest request = null;
        if (sra != null) {
            request = sra.getRequest();
        }
        return request;
    }
}

五、数据库SQL

CREATE TABLE `plat_sys_log` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `title` varchar(50) DEFAULT NULL COMMENT '操作方法',
  `action` varchar(50) DEFAULT NULL COMMENT '方法描述',
  `opType` int(2) DEFAULT NULL COMMENT '操作类型',
  `operationUser` varchar(50) DEFAULT NULL COMMENT '操作人',
  `path` varchar(255) DEFAULT NULL COMMENT '请求路径',
  `startTime` varchar(50) DEFAULT NULL COMMENT '方法执行耗时',
  `endTime` varchar(50) DEFAULT NULL COMMENT '操作时间',
  `parameter` varchar(2000) DEFAULT NULL COMMENT '方法入参',
  `result` text COMMENT '返回参数',
  `status` int(1) DEFAULT NULL COMMENT '操作状态（0正常 1异常）',
  `sourceIp` varchar(128) DEFAULT NULL COMMENT '请求ip',
  `errorMsg` varchar(2000) DEFAULT NULL COMMENT '错误信息',
  `requestMethod` varchar(10) DEFAULT '' COMMENT '请求方式',
  `method` varchar(100) DEFAULT NULL COMMENT '方法名称',
  `sysType` int(2) DEFAULT NULL COMMENT '系统类型',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=170 DEFAULT CHARSET=utf8;

六、其他

至于mapper和dao层代码我就不赘述了。给大家看一下效果图

调用方式：

@OperationLog(title = "看板统计", opType = OpType.STATISTICS,desc = "获取看板统计信息")

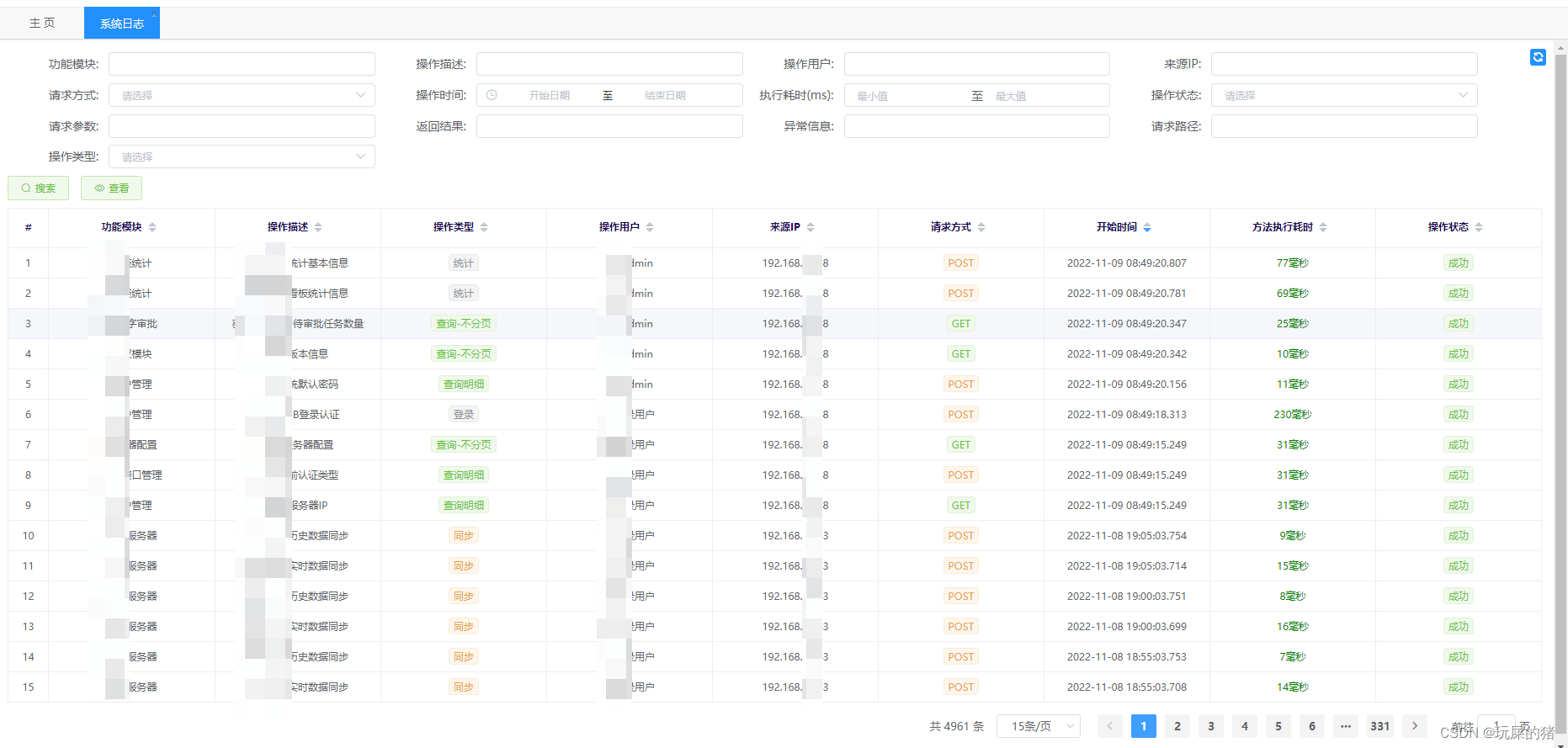

效果展示

七、生成apiPost.json接口文档

      1、因为项目接口基本使用的Map进行前后端传参，所以无法适用Swagger等主流API文档生成插件。所以另辟蹊径...

import com.alibaba.fastjson.JSONObject;
import com.hz.MubanApplication;
import com.hz.plat.common.util.DateUtil;
import com.hz.plat.sysLog.dao.SysLogMapper;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.io.FileUtils;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.stereotype.Component;
import org.springframework.test.context.junit4.SpringRunner;

import javax.annotation.Resource;
import java.io.File;
import java.io.IOException;
import java.util.*;

/**
 * @author xxs
 * @date 2022年11月04日 09:27
 */
@Component
@RunWith(SpringRunner.class)
@SpringBootTest(classes = MubanApplication.class)
@Slf4j
public class PostApiTest {

    @Resource
    SysLogMapper sysLogMapper;

    @Test
    public void getJsonFile() {
        String path = "C:\\Users\\xxs\\Desktop\\test.json";
        try {
            creteJsonFile(path);
            // File file = new File(path);
            // creteJsonFile(file);
        } catch (IOException e) {
            log.error("生成文件失败", e);
        }
    }

    /**
     * 直接生成json文件
     *
     * @throws IOException
     */
    public void creteJsonFile(String filePath) throws IOException {
        List

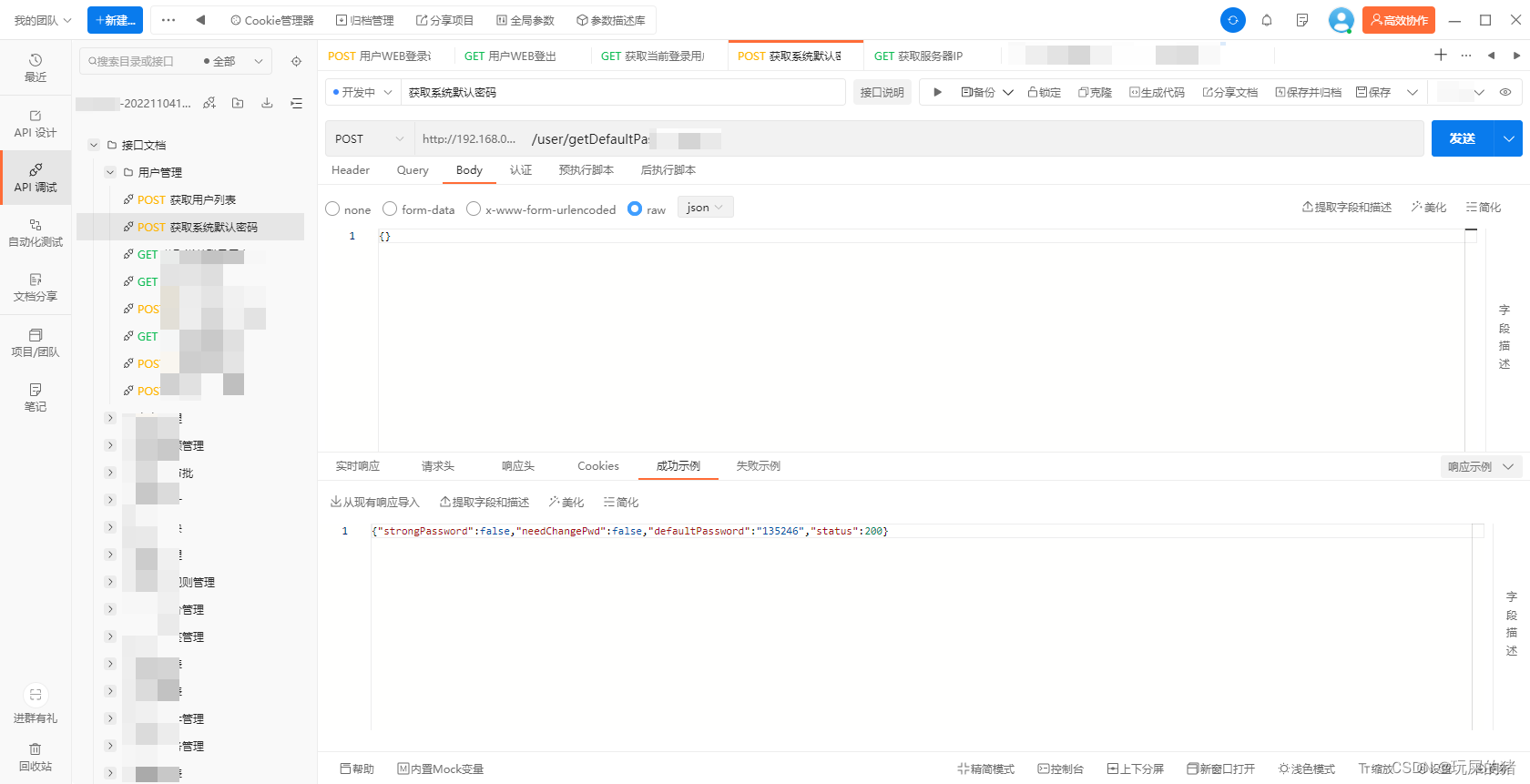

2、将生成的test.json文件导入ApiPost中，效果展示

 3、这里只贴出了关键部分代码，如果有哪里不清楚的欢迎留言
