spring boot AOP 记录系统操作日志和异常日志到数据库

发布于 2022-12-14 | 作者: liwei10822 | 来源: CSDN博客 | 转载于: CSDN博客

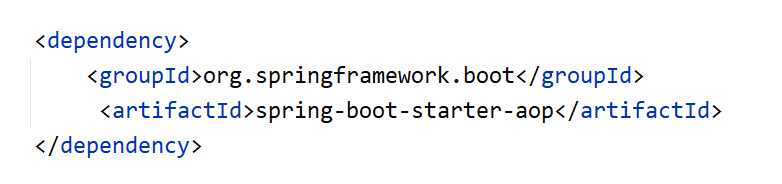

1、加入pom.xml

2、日志设计数据库

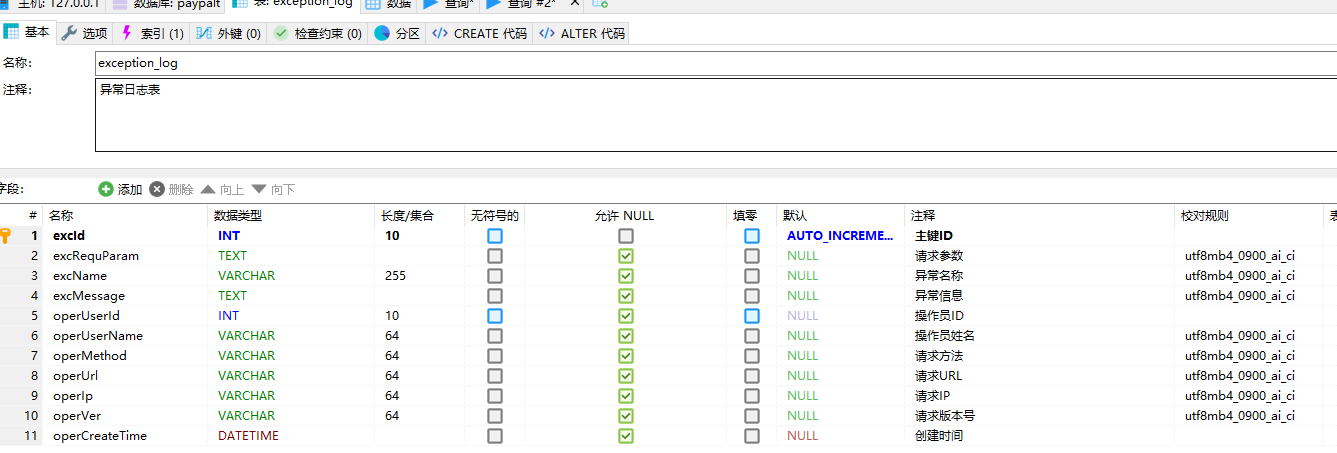

CREATE TABLE IF NOT EXISTS `exception_log` (
	`excId` int NOT NULL AUTO_INCREMENT COMMENT '主键ID',
	`excRequParam` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci COMMENT '请求参数',
	`excName` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '异常名称',
	`excMessage` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci COMMENT '异常信息',
	`operUserId` int DEFAULT NULL COMMENT '操作员ID',
	`operUserName` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '操作员姓名',
	`operMethod` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '请求方法',
	`operUrl` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '请求URL',
	`operIp` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '请求IP',
	`operVer` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '请求版本号',
	`operCreateTime` datetime DEFAULT NULL COMMENT '创建时间',
	PRIMARY KEY (`excId`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=latin1 COMMENT='异常日志表';

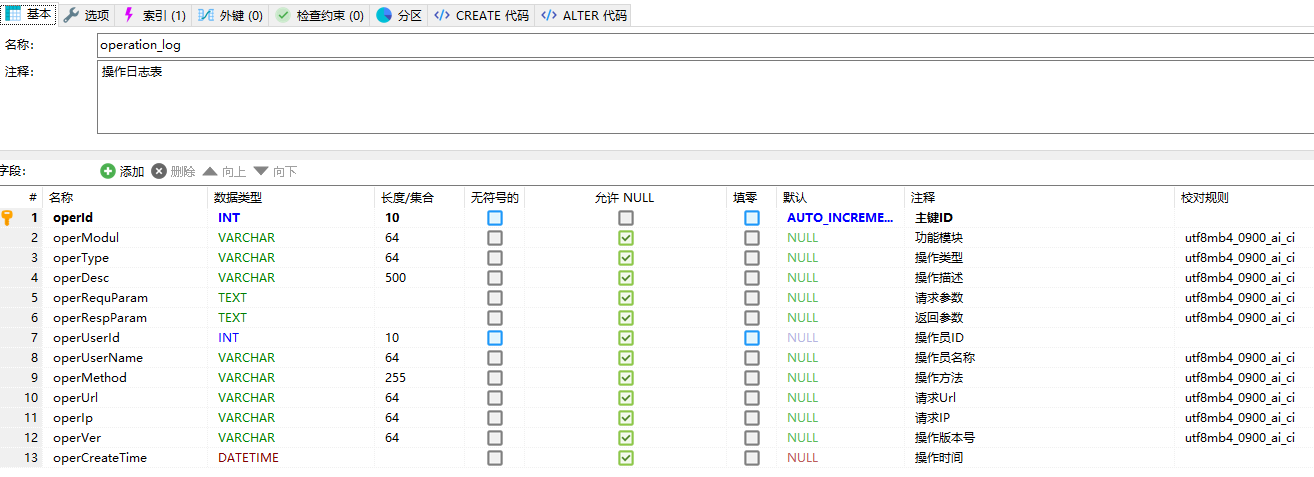

CREATE TABLE IF NOT EXISTS `operation_log` (
	`operId` int NOT NULL AUTO_INCREMENT COMMENT '主键ID',
	`operModul` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '功能模块',
	`operType` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '操作类型',
	`operDesc` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '操作描述',
	`operRequParam` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci COMMENT '请求参数',
	`operRespParam` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci COMMENT '返回参数',
	`operUserId` int DEFAULT NULL COMMENT '操作员ID',
	`operUserName` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '操作员名称',
	`operMethod` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '操作方法',
	`operUrl` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '请求Url',
	`operIp` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '请求IP',
	`operVer` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '操作版本号',
	`operCreateTime` datetime DEFAULT NULL COMMENT '操作时间',
	PRIMARY KEY (`operId`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=latin1 COMMENT='操作日志表';

3、数据实体类

package com.lw.entity;

import lombok.Data;
import java.util.Date;

/**
 * @Auther:LW
 * @Date:2022年1月8日 21:08
 */
@Data
public class ExceptionLog extends Page{
	private Integer excId;
	private String excRequParam;
	private String excName;
	private String excMessage;
	private Integer operUserId;
	private String operUserName;
	private String operMethod;
	private String operUrl;
	private String operIp;
	private String operVer;
	private Date operCreateTime;
}

package com.lw.entity;

import lombok.Data;
import java.util.Date;

/**
 * @Auther:LW
 * @Date:2022年1月8日 20:21
 */
@Data
public class OperationLog extends Page{
	private Integer operId;
	private String operModul;
	private String operType;
	private String operDesc;
	private String operRequParam;
	private String operRespParam;
	private Integer operUserId;
	private String operUserName;
	private String operMethod;
	private String operUrl;
	private String operIp;
	private String operVer;
	private Date operCreateTime;
}

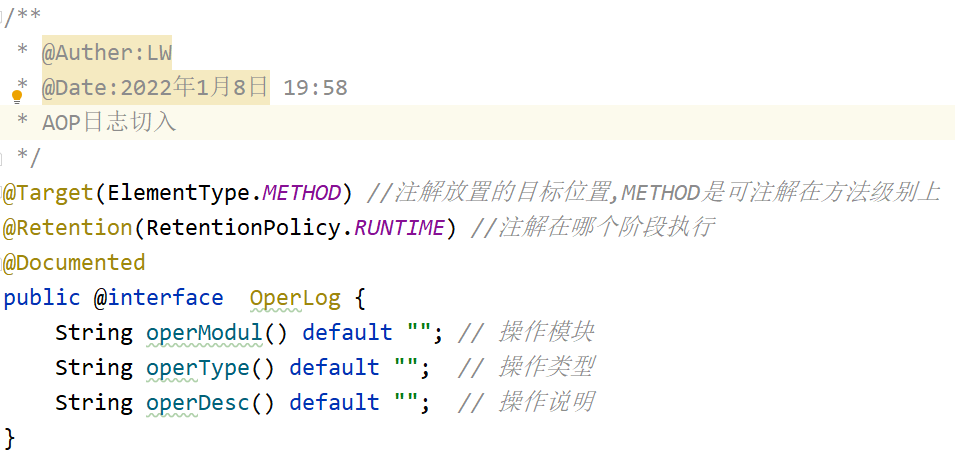

4、进行AOP日志切入配置Bean

package com.lw.config;

import java.lang.annotation.*;

/**
 * @Auther:LW
 * @Date:2022年1月8日 19:58
 * AOP日志切入
 */
@Target(ElementType.METHOD) //注解放置的目标位置,METHOD是可注解在方法级别上
@Retention(RetentionPolicy.RUNTIME) //注解在哪个阶段执行
@Documented
public @interface OperLog {
	String operModul() default ""; // 操作模块
	String operType() default ""; // 操作类型
	String operDesc() default ""; // 操作说明
}

5、进行日志切入操作

package com.lw.config;

import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;
import javax.servlet.http.HttpServletRequest;

import com.alibaba.fastjson.JSON;
import com.lw.entity.ExceptionLog;
import com.lw.entity.OperationLog;
import com.lw.entity.SystemUser;
import com.lw.service.SystemLogService;
import com.lw.utils.HttpUtils;
import com.lw.utils.SesionUtils;

import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.AfterThrowing;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.aspectj.lang.reflect.MethodSignature;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.env.Environment;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.RequestContextHolder;

/**
 * @Auther:LW
 * @Date:2022年1月8日 20:04
 * 登录自定义表单其他参数
 */
@Aspect
@Component
public class OperLogAspect {
	@Autowired
	private Environment env;

	@Autowired
	private SystemLogService systemLogService;

	/**
	 * 设置操作日志切入点 记录操作日志 在注解的位置切入代码
	 */
	@Pointcut("@annotation(com.lw.config.OperLog)")
	public void operLogPoinCut() {
	}

	/**
	 * 设置操作异常切入点记录异常日志 扫描所有controller包下操作
	 */
	@Pointcut("execution(* com.lw.controller..*.*(..))")
	public void operExceptionLogPoinCut() {
	}

	/**

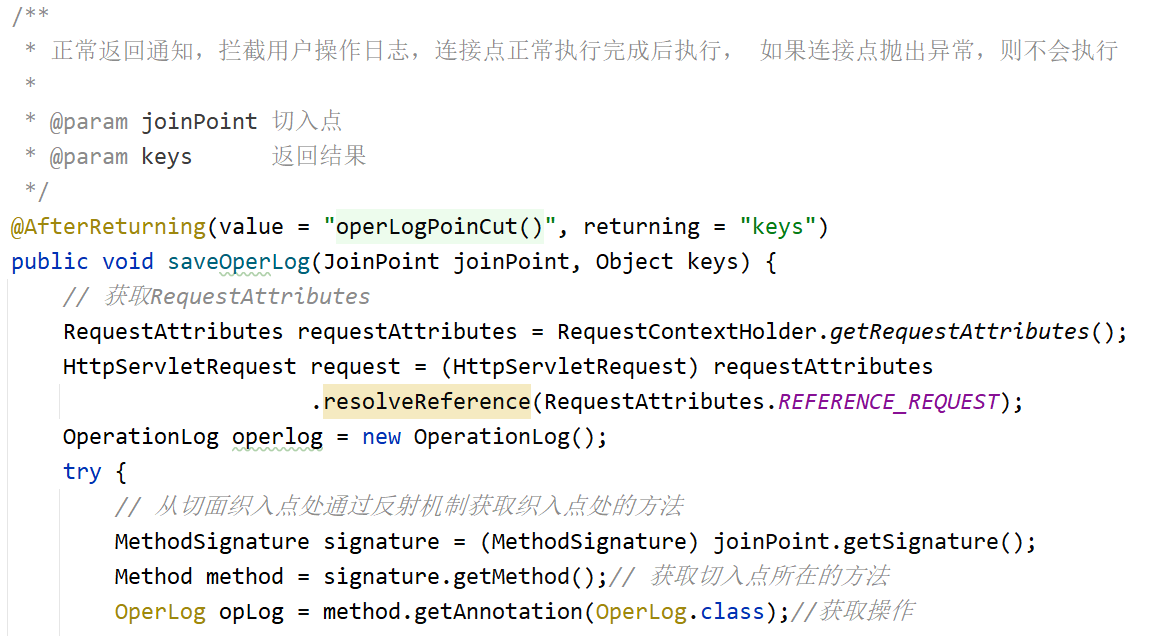

	 * 正常返回通知，拦截用户操作日志，连接点正常执行完成后执行， 如果连接点抛出异常，则不会执行
	 *
	 * @param joinPoint 切入点
	 * @param keys 返回结果
	 */
	@AfterReturning(value = "operLogPoinCut()", returning = "keys")
	public void saveOperLog(JoinPoint joinPoint, Object keys) {
		// 获取RequestAttributes
		RequestAttributes requestAttributes = RequestContextHolder.getRequestAttributes();
		HttpServletRequest request = (HttpServletRequest) requestAttributes.resolveReference(RequestAttributes.REFERENCE_REQUEST);
		OperationLog operlog = new OperationLog();
		try {
			// 从切面织入点处通过反射机制获取织入点处的方法
			MethodSignature signature = (MethodSignature) joinPoint.getSignature();
			Method method = signature.getMethod();// 获取切入点所在的方法
			OperLog opLog = method.getAnnotation(OperLog.class);//获取操作
			if (opLog !=null){
				String operModul = opLog.operModul();
				String operType = opLog.operType();
				String operDesc = opLog.operDesc();
				operlog.setOperModul(operModul); // 操作模块
				operlog.setOperType(operType); // 操作类型
				operlog.setOperDesc(operDesc); // 操作描述
			}

			// 获取请求的类名
			String className = joinPoint.getTarget().getClass().getName();
			String methodName = method.getName();// 获取请求的方法名
			methodName = className + "." + methodName;
			operlog.setOperMethod(methodName); // 请求方法
			Map<String, String> rtnMap = converMap(request.getParameterMap());// 请求的参数
			String params = JSON.toJSONString(rtnMap);
			operlog.setOperRequParam(params);
			operlog.setOperRespParam(JSON.toJSONString(keys));

			SystemUser user = SesionUtils.getSysUserSession();
			operlog.setOperUserId(user.getSysId());
			operlog.setOperUserName(user.getUsername());
			operlog.setOperIp(HttpUtils.getIpAddress(request));
			operlog.setOperUrl(request.getRequestURI());
			operlog.setOperVer(env.getProperty("platform.operVer"));
			systemLogService.operationLogAdd(operlog);
		} catch (Exception exception){
			exception.printStackTrace();
		}
	}

	/**
	 * 异常返回通知，用于拦截异常日志信息 连接点抛出异常后执行
	 *
	 * @param joinPoint 切入点
	 * @param e 异常信息
	 */
	@AfterThrowing(pointcut = "operExceptionLogPoinCut()", throwing = "e")
	public void saveExceptionLog(JoinPoint joinPoint, Throwable e) {
		// 获取RequestAttributes
		RequestAttributes requestAttributes = RequestContextHolder.getRequestAttributes();
		// 从获取RequestAttributes中获取HttpServletRequest的信息
		HttpServletRequest request = (HttpServletRequest) requestAttributes.resolveReference(RequestAttributes.REFERENCE_REQUEST);
		ExceptionLog excepLog = new ExceptionLog();
		try {
			// 从切面织入点处通过反射机制获取织入点处的方法
			MethodSignature signature = (MethodSignature) joinPoint.getSignature();
			// 获取切入点所在的方法
			Method method = signature.getMethod();
			String className = joinPoint.getTarget().getClass().getName();
			String methodName = method.getName();
			methodName = className + "." + methodName;

			Map<String, String> rtnMap = converMap(request.getParameterMap());
			String params = JSON.toJSONString(rtnMap);

			excepLog.setExcRequParam(params);
			excepLog.setOperMethod(methodName);
			excepLog.setExcName(e.getClass().getName());
			excepLog.setExcMessage(stackTraceToString(e.getClass().getName(), e.getMessage(), e.getStackTrace()));

			SystemUser user = SesionUtils.getSysUserSession();
			excepLog.setOperUserId(user.getSysId());
			excepLog.setOperUserName(user.getUsername());
			excepLog.setOperUrl(request.getRequestURI());
			excepLog.setOperIp(HttpUtils.getIpAddress(request));
			excepLog.setOperVer(env.getProperty("platform.operVer"));
			systemLogService.exceptionLogAdd(excepLog);
		} catch (Exception exception) {
			exception.printStackTrace();
		}
	}

	/**
	 * 转换request 请求参数
	 *
	 * @param paramMap request获取的参数数组
	 */
	public Map<String, String> converMap(Map<String, String[]> paramMap) {
		Map<String, String> rtnMap = new HashMap<String, String>();
		for(String key : paramMap.keySet()) {
			rtnMap.put(key, paramMap.get(key)[0]);
		}
		return rtnMap;
	}

	/**
	 * 转换异常信息为字符串
	 *
	 * @param exceptionName 异常名称
	 * @param exceptionMessage 异常信息
	 * @param elements 堆栈信息
	 */
	public String stackTraceToString(String exceptionName, String exceptionMessage, StackTraceElement[] elements) {
		StringBuffer strbuff = new StringBuffer();
		for (StackTraceElement stet : elements) {
			strbuff.append(stet + "\n");
		}
		String message = exceptionName + ":" + exceptionMessage + "\n\t" + strbuff.toString();
		return message;
	}
}

6、获取IP地址

package com.lw.utils;

import org.apache.commons.lang3.StringUtils;
import javax.servlet.http.HttpServletRequest;

/**
 * @Auther:LW
 * @Date:2022年1月8日 20:58
 */
public class HttpUtils {
	/**
	 * 获取用户真实IP地址，不使用request.getRemoteAddr();的原因是有可能用户使用了代理软件方式避免真实IP地址,
	 *
	 * 可是，如果通过了多级反向代理的话，X-Forwarded-For的值并不止一个，而是一串IP值，究竟哪个才是真正的用户端的真实IP呢？
	 * 答案是取X-Forwarded-For中第一个非unknown的有效IP字符串。
	 *
	 * 如：X-Forwarded-For：192.168.1.110, 192.168.1.120, 192.168.1.130,
	 * 192.168.1.100
	 *
	 * 用户真实IP为： 192.168.1.110
	 *
	 * @param request
	 * @return
	 */
	public static String getIpAddress(HttpServletRequest request) {
		String Xip = request.getHeader("X-Real-IP");
		String XFor = request.getHeader("X-Forwarded-For");

		//多次反向代理后会有多个ip值，第一个ip才是真实ip
		if (StringUtils.isNotEmpty(XFor) && !"unKnown".equalsIgnoreCase(XFor)) {
			int index = XFor.indexOf(",");
			if (index != -1) {
				return "0:0:0:0:0:0:0:1".equals(XFor.substring(0, index)) ? "127.0.0.1" : XFor.substring(0, index);
			} else {
				return "0:0:0:0:0:0:0:1".equals(XFor) ? "127.0.0.1" : XFor;
			}
		}

		XFor = Xip;
		if (StringUtils.isNotEmpty(XFor) && !"unKnown".equalsIgnoreCase(XFor))
			return "0:0:0:0:0:0:0:1".equals(XFor) ? "127.0.0.1" : XFor;

		if (StringUtils.isBlank(XFor) || "unknown".equalsIgnoreCase(XFor))
			XFor = request.getHeader("Proxy-Client-IP");

		if (StringUtils.isBlank(XFor) || "unknown".equalsIgnoreCase(XFor))
			XFor = request.getHeader("WL-Proxy-Client-IP");

		if (StringUtils.isBlank(XFor) || "unknown".equalsIgnoreCase(XFor))
			XFor = request.getHeader("HTTP_CLIENT_IP");

		if (StringUtils.isBlank(XFor) || "unknown".equalsIgnoreCase(XFor))
			XFor = request.getHeader("HTTP_X_FORWARDED_FOR");

		if (StringUtils.isBlank(XFor) || "unknown".equalsIgnoreCase(XFor))
			XFor = request.getRemoteAddr();

		return "0:0:0:0:0:0:0:1".equals(XFor) ? "127.0.0.1" : XFor;
	}
}

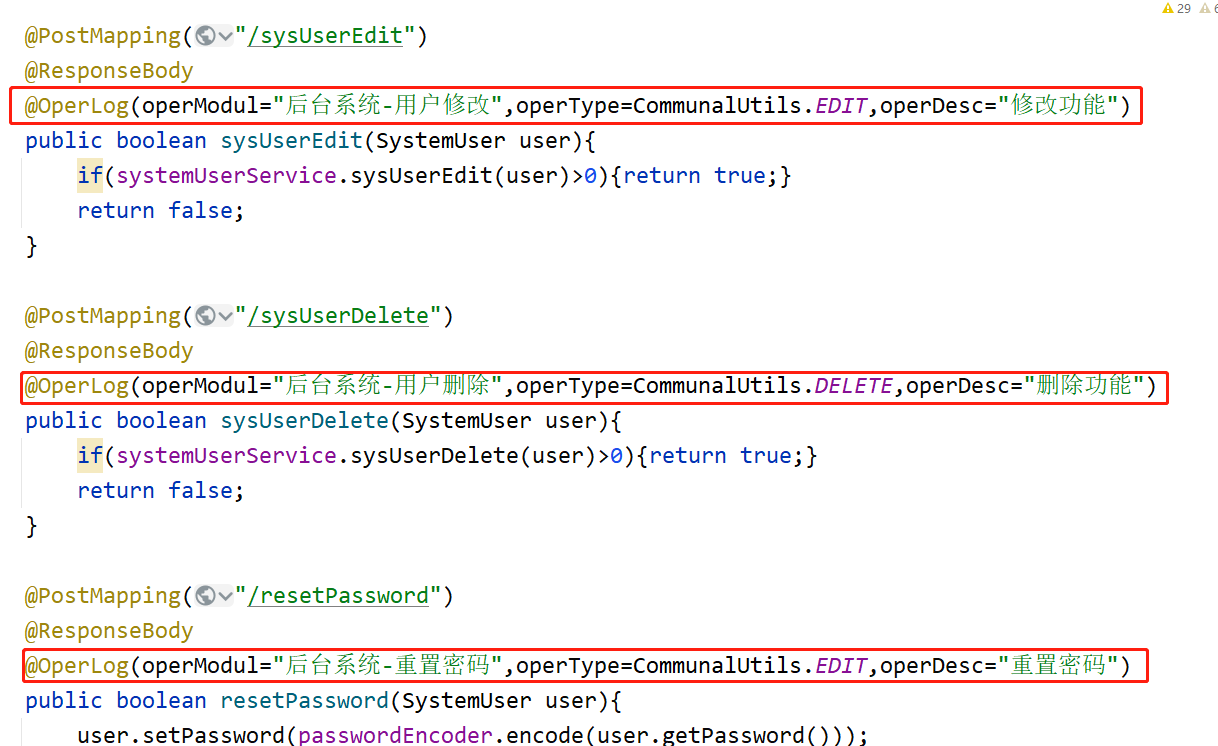

7、进行需要记录日志操作加入切入目标

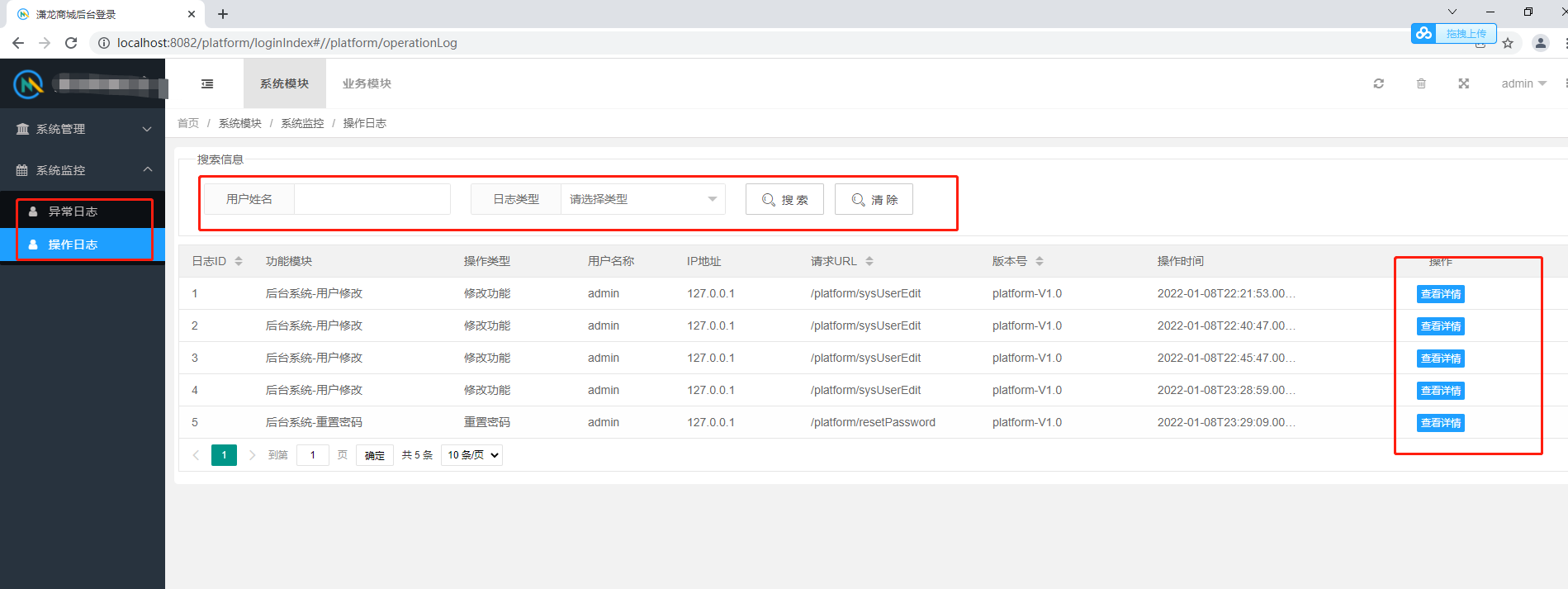

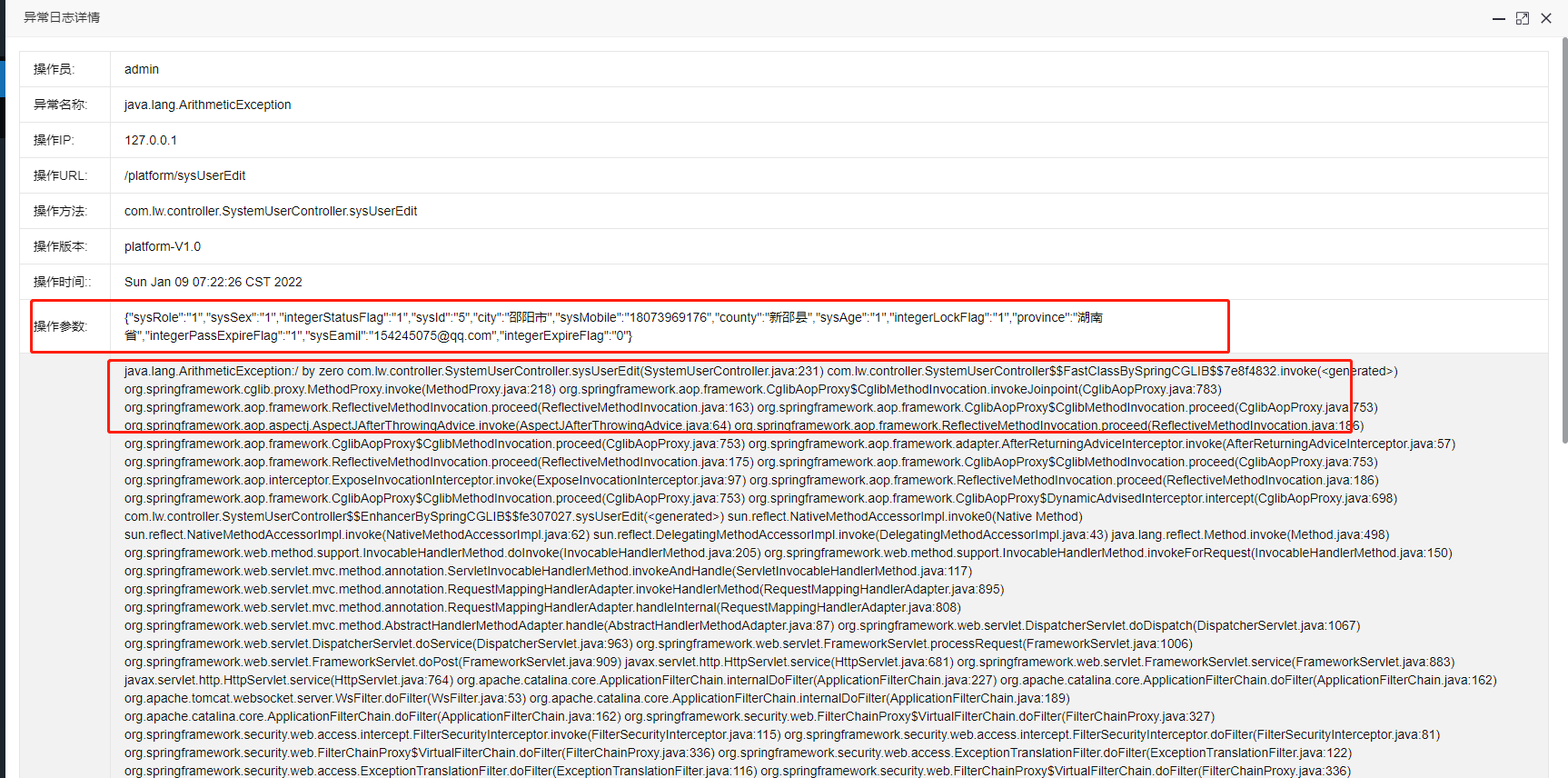

8、后端展示
